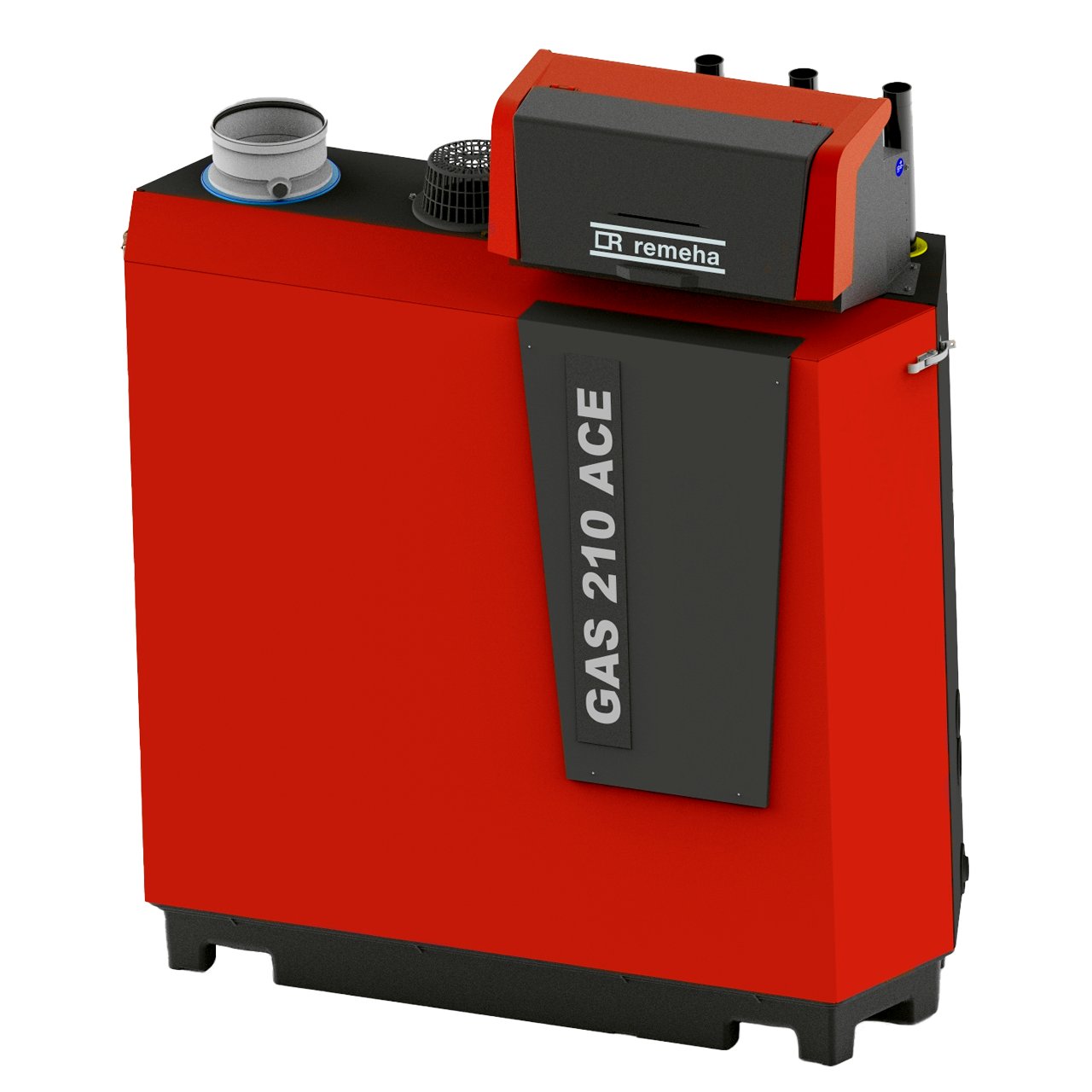

A compact, lightweight structure makes the Gas 210 Ace floor standing boiler quick and easy to install. It has the capacity to be installed back-to-back, which provides added flexibility in space-saving design. The optional secondary return feature makes this boiler particularly suitable with heating technologies that use low-grade heat, such as heat pumps or underfloor circuits.
- Floor Standing Boilers
- Gas 210 Ace
- Home
- Products
- Floor Standing Boilers
- Gas 210 Ace
Features and Benefits
High-efficiency
High-efficiency floor standing boiler up to 95.8% GCV Seasonal Efficiency – reliable, high-performance operation
Compact size
Extremely compact dimensions and ability to be installed back-to-back – space-saving solution, ideally suited for modular configurations
Environmentally friendly
Low Class 6 NOx emission levels from 33mg/kWh (0% O2 dry) – low pollutant emissions meeting all environmental legislation
Energy efficient
Options for direct weather compensation – close matching of heat demand at all times for maximum energy efficiency
Maximum efficiencies
Optional secondary return feature – maximum efficiencies with low-grade heat technologies
Easy operation
Digital diagnostic display and remote signalling options – easy operation and maintenance
Flexible
For single use, cascade or in conjunction with condensing boilers
Quiet operation
Low noise starting from 48dBA max at 1m for a quiet operation
Show More
Show Less
Product Literature
Installation & Service Manuals
Installation Manuals
Technical Specifications
Technical Specification
Model | 80 | 120 | 160 | 200 |
|---|---|---|---|---|
| 3 sections | 4 sections | 5 sections | 6 sections | |
| Performance | ||||
| Nominal heat output central heating operation @ 80/60°C kW (min-max) | 18-87 | 22-120 | 29-166 | 39-200 |
| Nominal heat output central heating operation @ 50/30°C kW (min-max) | 20-93 | 24-129 | 33-179 | 44-217 |
| Nominal input (Hi) (min-max) | 19-89 | 23-123 | 31-170 | 41-205 |
| Efficiency | ||||
| SBEM seasonal efficiency GCV | 95.8% | 95.66% | 95.5% | 95.74% |
| Efficiency – full load 100% NCV | 97.4% | 97.5% | 97.5% | 97.6% |
| Efficiency – part load 30% NCV | 108.6% | 108.1% | 108.3% | 108.4% |
| Eco design useful efficiency @ 80/60°C (100% full load) GCV | 87.7% | 87.8% | 87.8% | 87.8% |
| Eco design useful efficiency @ 50/30°C (30% part load) GCV | 97.7% | 97.5% | 97.3% | 97.6% |
| Gas | ||||
| Standard fuel | Natural gas | Natural gas | Natural gas | Natural gas |
| Optional fuel adjustment – see installation & service manual | LPG (propane) | LPG (propane) | LPG (propane) | LPG (propane) |
| Max gas consumption NG m3/h | 9.4 | 13 | 18 | 21.7 |
| Max gas consumption LPG m3/h | 3.6 | 4.8 | 7 | 8.4 |
| Min/max gas inlet pressure NG mbar | 17-25 | 17-25 | 17-25 | 17-25 |
| Min/max gas pressure LPG mbar | 37-50 | 37-50 | 37-50 | 37-50 |
| Gas connection size BSP inches | 1¼” male thread | 1¼” male thread | 1¼” male thread | 1½” male thread |
| Flame protection | Ionisation | Ionisation | Ionisation | Ionisation |
| Ignition | Electronic | Electronic | Electronic | Electronic |
| Flue (concentric connection supplied as standard) | ||||
| Flue diameter mm I/D | 150 | 150 | 150 | 150 |
| Air inlet diameter mm I/D | 150 | 150 | 150 | 150 |
| Mass flue gas flow rate kg/h | 27-150 | 37-197 | 39-287 | 65-345 |
| Max counter pressure PA | 130 | 130 | 130 | 130 |
| Hydraulics | ||||
| Water content litres | 12 | 16 | 20 | 24 |
| Hydraulic resistance @ 11°C ΔT mbar | 549 | 449 | 566 | 599 |
| Hydraulic resistance @ 20°C ΔT mbar | 165 | 135 | 170 | 180 |
| Nominal flow rate @11°C ΔT l/s | 1.89 | 2.61 | 3.61 | 4.33 |
| Nominal flow rate @ 20°C ΔT l/s | 1.04 | 1.43 | 1.98 | 2.38 |
| Minimum flow rate I/hr | 1120 | 1486 | 2142 | 2585 |
| Condensate connection | 32mm OD | 32mm OD | 32mm OD | 32mm OD |
| Connection size BSP | 1¼” male thread | 1¼” male thread | 1¼” male thread | 1½” male thread* |
| Standard operating temperature °C | 20-90 | 20-90 | 20-90 | 20-90 |
| Max operating temperature °C | 90 | 90 | 90 | 90 |
| Max water temperature °C | 110 | 110 | 110 | 110 |
| Max water operating pressure bar | 6 | 6 | 6 | 6 |
| Min water operating pressure bar | 0.8 | 0.8 | 0.8 | 0.8 |
| General | ||||
| Dry weight kg | 115 | 135 | 165 | 188 |
| Dimension (WxHxD) | 1190 x 1368 x 450 | 1190 x 1368 x 450 | 1190 x 1368 x 450 | 1190 x 1368 x 450 |
| NOx (Dry, 0% 02) Mg/kWh | 56 | 49 | 44 | 52 |
| Noise levels dB(A) at 1 metre | Less than 59 | Less than 59 | Less than 59 | Less than 59 |
| Eco design sound power levels LWA indoors dB | 67 | 67 | 67 | 67 |
| Standby heat Loss | 0.21 | 0.21 | 0.21 | 0.21 |
| Electrical | ||||
| Nominal power supply | 230v x 1Ph x 50hz | 230v x 1Ph x 50hz | 230v x 1Ph x 50hz | 230v x 1Ph x 50hz |
| Start current amps | 26-103 | 28-167 | 49-196 | 48-306 |
| Modulating input V dc | 0-10 | 0-10 | 0-10 | 0-10 |
| Fuse rating amps | 6.3 | 6.3 | 6.3 | 6.3 |
| Controls voltage | 24 (max 4va) | 24 (max 4va) | 24 (max 4va) | 24 (max 4va) |
| Insulation class IP | IPX1** | IPX1** | IPX1** | IPX1** |
*with supplied 1¼” > 1½" reducer bushings
**IP20 when appliance is fitted with a B23 conventional flue
